Industries producing tanks, cylinders, pipes, tubes, pressure vessels, HVAC components, and fabricated metal products increasingly rely on automated welding equipment to achieve these objectives. Two important technologies used in such applications are the vertical seam welding machine and tube seam welding machine.
Although both machines automate longitudinal welding operations, their configurations, workpiece handling methods, and typical applications can differ significantly. Understanding their capabilities helps manufacturers select equipment that improves productivity while maintaining reliable weld integrity.
What Is a Vertical Seam Welding Machine?
A vertical seam welding machine is an automated welding system designed to weld longitudinal seams while the workpiece or seam is positioned vertically. It is commonly used for cylindrical tanks, vessels, drums, silos, pipes, and fabricated structures where vertical positioning provides better accessibility or production efficiency.
The machine typically combines a rigid supporting frame, welding carriage, clamping mechanism, torch positioning unit, electrical controls, and programmable welding parameters.
Depending on the application, manufacturers may integrate processes such as:
- TIG welding
- MIG/MAG welding
- Plasma welding
- Submerged arc welding
- Laser welding
Automated movement maintains controlled torch travel along the seam, helping operators produce uniform penetration and bead appearance.
How Does a Vertical Seam Welding Machine Work?
The process begins by positioning and aligning the fabricated component so that its joint follows the required vertical welding path. Mechanical or pneumatic fixtures securely hold the material and minimise movement during welding.
After setup, the welding torch travels along the seam at a programmed speed. Important parameters such as welding current, voltage, wire feed rate, shielding gas flow, and carriage speed can be controlled according to the material.
Modern systems may include PLC controls, servo motors, touch-screen interfaces, seam tracking, and automatic torch height adjustment.
Typical Operating Sequence
- Load the fabricated component.
- Align both edges of the joint.
- Secure the material using clamps or fixtures.
- Select the required welding programme.
- Position the welding torch.
- Start automated seam welding.
- Monitor parameters during operation.
- Inspect the finished weld.
This controlled sequence improves repeatability across multiple components.
What Is a Tube Seam Welding Machine?
A tube seam welding machine is designed specifically for producing longitudinal welded tubes and pipes from formed sheet or strip material.
After metal is rolled or formed into a cylindrical profile, its adjoining edges require precise welding. The machine accurately aligns these edges and produces a continuous longitudinal weld along the tube.
Depending on tube dimensions and production requirements, the equipment can process stainless steel, carbon steel, aluminium, titanium, nickel alloys, and other weldable metals.
Where Tube Seam Welding Is Used
Tube seam welding technology is commonly applied in manufacturing:
- Stainless steel tubes
- Exhaust components
- HVAC ducting
- Industrial pipelines
- Decorative tubing
- Food-processing equipment
- Chemical-processing components
- Automotive parts
- Pressure-related components
- Heat exchanger tubes
Accurate edge alignment is particularly important because even minor variations can affect weld penetration and dimensional accuracy.
Important Features of Tube Seam Welding Machines
Modern tube seam welding machine designs incorporate automation to improve both productivity and consistency.
Precision Clamping
Strong clamping mechanisms keep tube edges properly aligned throughout the welding cycle. This reduces distortion and uneven joint formation.
Automated Torch Movement
Servo-controlled carriage systems maintain consistent welding speed, producing more predictable weld characteristics.
Programmable Parameters
Operators can store welding settings for different tube materials, thicknesses, and diameters, reducing setup time between production batches.
Cooling Systems
Water-cooled torches and fixtures may help manage heat during continuous production, particularly when welding thin stainless steel tubing.
Seam Tracking
Advanced machines can automatically detect small deviations in the joint and adjust torch positioning accordingly.

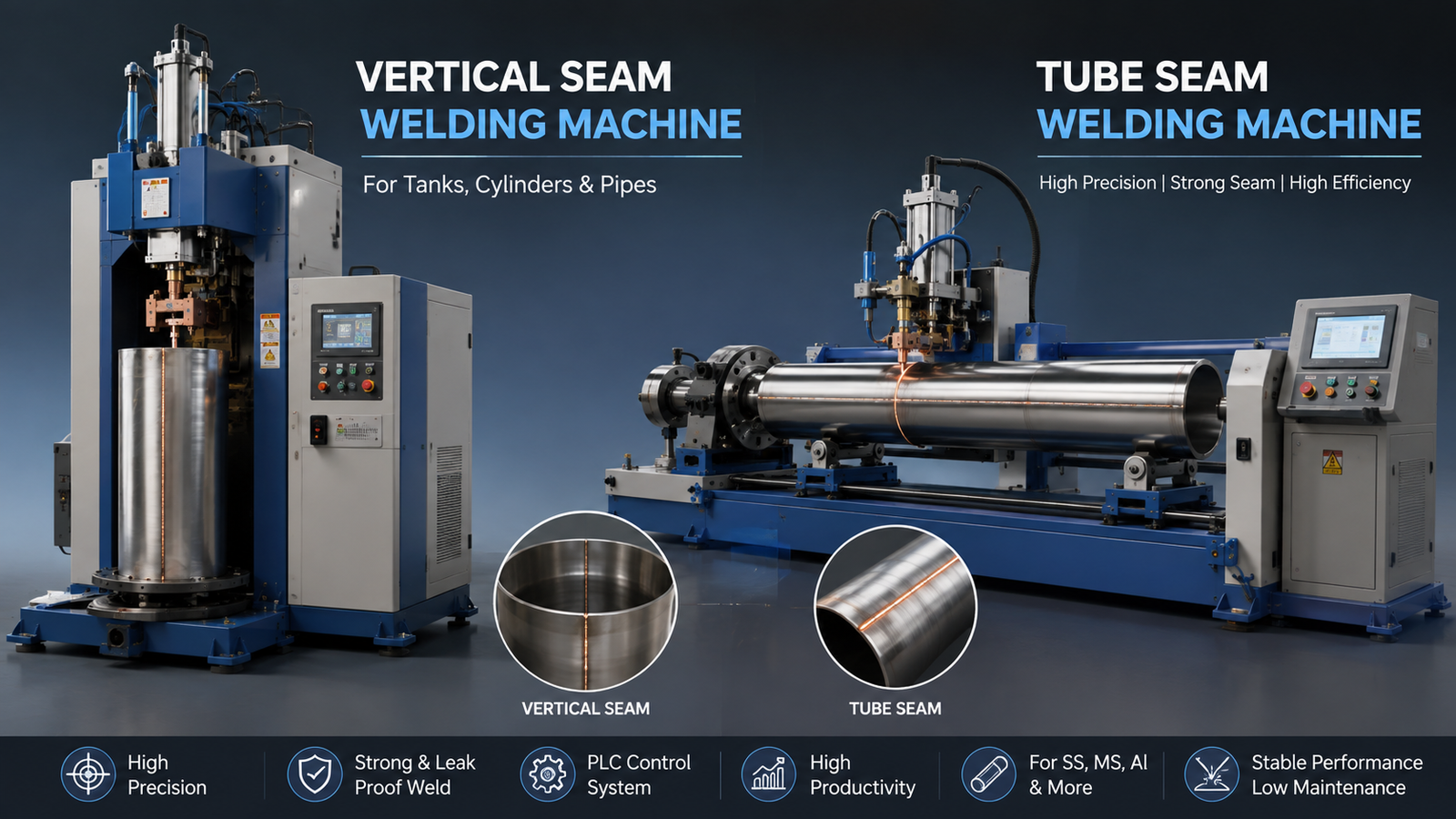

Vertical Seam Welding Machine vs Tube Seam Welding Machine
| Feature | Vertical Seam Welding Machine | Tube Seam Welding Machine |
| Main purpose | Vertical longitudinal welding | Longitudinal tube welding |
| Common products | Tanks, vessels, drums, cylinders | Pipes and tubes |
| Workpiece position | Usually vertical | Typically horizontal |
| Automation level | Manual to fully automated | Often highly automated |
| Common processes | TIG, MIG, plasma, SAW | TIG, plasma, laser, MIG |
| Production focus | Fabrication flexibility | Repetitive tube production |
The correct machine depends primarily on product geometry, production volume, material thickness, required welding process, and quality expectations.
Benefits of Automated Seam Welding
Replacing conventional manual welding with automated equipment can provide significant manufacturing benefits.
Key advantages include:
- More consistent welding speed
- Uniform penetration
- Improved bead appearance
- Reduced operator dependency
- Better dimensional consistency
- Increased production capacity
- Repeatable welding parameters
- Reduced rework
- Improved process control
- Easier quality standardisation
Automation does not eliminate the need for experienced welding professionals. Instead, it allows skilled personnel to focus on setup, programming, inspection, process optimisation, and quality control.
Choosing the Right Seam Welding Machine
Manufacturers should avoid selecting equipment based only on maximum welding speed or price. The machine should match actual production conditions.
Evaluate the following factors:
- Workpiece diameter and length
- Material type
- Minimum and maximum thickness
- Required welding process
- Production quantity
- Joint preparation
- Desired penetration
- Automation requirements
- Available factory space
- Operator skill level
- Maintenance requirements
- Future production expansion
For tube manufacturing, ask the supplier whether the machine can accommodate future tube sizes. For vertical seam applications, carefully evaluate fixture capacity and component loading arrangements.
Quality Considerations in Seam Welding
Successful automated welding requires more than purchasing suitable machinery. Joint preparation, material cleanliness, shielding gas quality, welding consumables, fixture accuracy, and parameter optimisation all influence final results.
Before mass production, manufacturers should develop welding procedures through controlled trials.
For demanding applications, completed seams may require visual inspection, dimensional measurement, dye penetrant testing, ultrasonic testing, radiographic examination, or other non-destructive testing methods depending on applicable standards.
Frequently Asked Questions
What is a vertical seam welding machine?
It is equipment that automatically welds longitudinal seams positioned vertically, commonly on tanks, cylinders, vessels, and fabricated structures.
What is a tube seam welding machine?
It is an automated system used to weld longitudinal joints in formed metal tubes and pipes.
Which welding process is suitable for stainless steel tubes?
TIG and plasma welding are commonly considered because they can provide controlled, high-quality welds.
Can seam welding machines handle different thicknesses?
Yes. Actual capability depends on machine design, welding power source, fixtures, and welding process.
Are these machines fully automatic?
Machines can range from semi-automatic configurations to PLC-controlled automated production systems.
Can aluminium tubes be seam welded?
Yes, provided the machine, welding process, shielding system, and parameters are suitable for aluminium.
Why is clamping important?
Accurate clamping prevents joint movement and helps maintain consistent edge alignment.
Does automation improve weld quality?
Properly configured automation improves repeatability by maintaining controlled torch position, travel speed, and welding parameters.
Can a machine weld different tube diameters?
Many systems accommodate multiple diameters within a specified operating range by changing fixtures or machine settings.
How should I select a welding machine supplier?
Evaluate technical support, machine construction, automation capability, spare parts, customisation, commissioning, training, and after-sales service.
