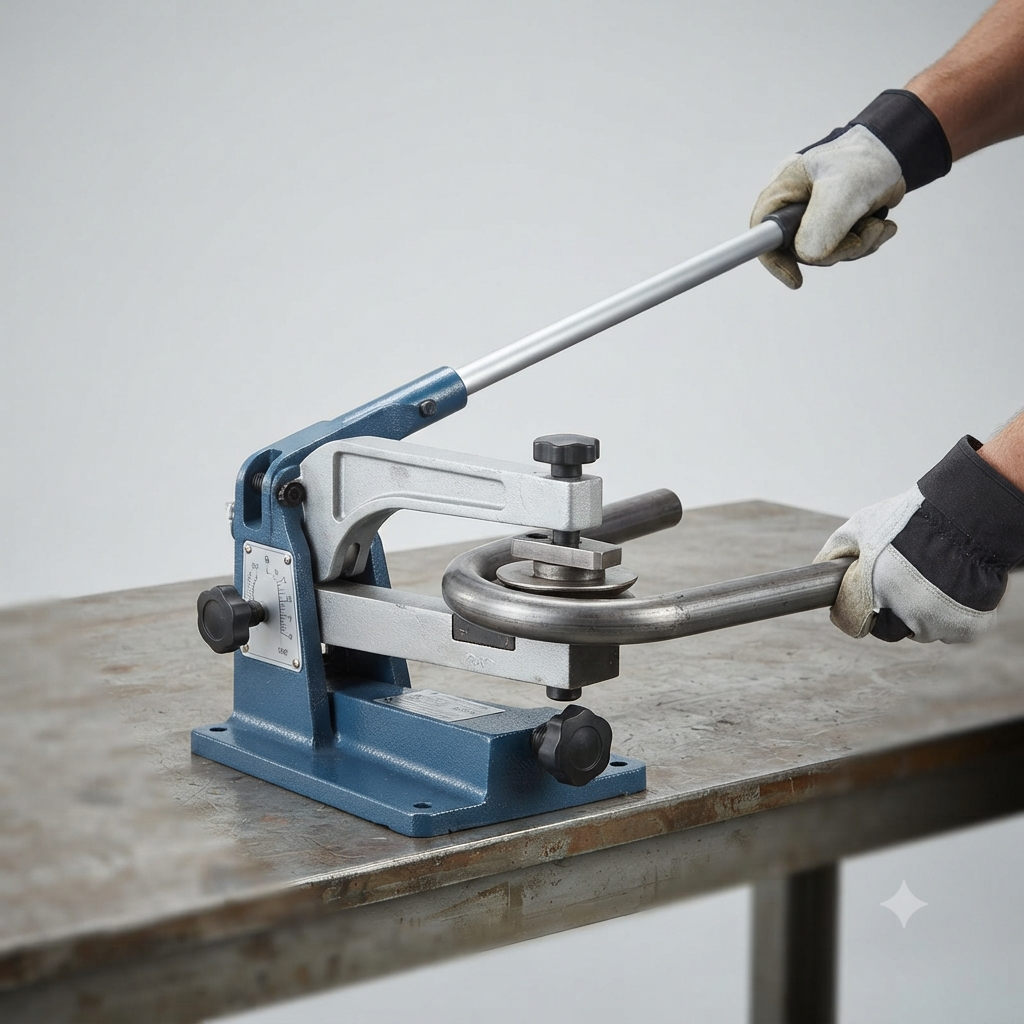

A pipe clamp bending machine is a specialized industrial tool used to bend pipes, tubes, and clamp sections into precise angles and shapes without damaging the material. It is widely used in fabrication workshops, automotive manufacturing, construction projects, HVAC systems, and metal furniture production. By ensuring accuracy and repeatability, this machine helps manufacturers reduce waste and improve production efficiency.
What Is a Pipe Clamp Bending Machine?
A pipe clamp bending machine holds the pipe firmly with a clamping mechanism while a bending die forms the required angle. The machine can create bends ranging from simple curves to complex multi-angle shapes.
Main components
- Clamping unit – secures the pipe during operation.
- Bending die – determines the bend radius.
- Pressure roller – supports the pipe and prevents deformation.
- Hydraulic or electric drive – provides the force needed for bending.
- Control panel – allows operators to set bend angles and speed.
Types of Pipe Clamp Bending Machines
| Type | Best for |
| Manual | Small workshops |
| Hydraulic | Heavy-duty industrial use |
| Electric | High precision and automation |
| CNC bending machine | Complex production lines |
Among these, hydraulic pipe clamp bending machines are the most common because they offer high bending force and consistent results.
Key Features
High bending accuracy
Modern machines can achieve precise angles with minimal deviation, making them suitable for industries where accuracy is critical.
Strong clamping mechanism
The clamp prevents pipe slippage and maintains the pipe’s round shape during bending.
Adjustable bend radius
Operators can change dies to produce different bend radii for various pipe sizes.
Durable construction
Most industrial models are made from hardened steel, ensuring long service life even under continuous operation.
Benefits of Using a Pipe Clamp Bending Machine
Using a pipe clamp bending machine offers several advantages:
- Reduces material wastage
- Improves production speed
- Ensures repeatable bends
- Lowers labor costs
- Minimizes pipe deformation
- Enhances workplace safety
These benefits make the machine an essential investment for fabrication and manufacturing businesses.
Industrial Applications
Pipe clamp bending machines are used in many sectors, including:
- Automotive industry – exhaust systems, roll cages, and fuel lines.
- Construction – structural pipe frameworks and railings.
- HVAC – air-conditioning and ventilation pipelines.
- Furniture manufacturing – metal chairs, tables, and frames.
- Oil and gas – pipeline fabrication and maintenance.
How to Choose the Right Machine
Before purchasing, consider the following factors:
Pipe size range
Ensure the machine can handle the minimum and maximum pipe diameters you use.
Material compatibility
Check whether it supports steel, stainless steel, aluminum, or copper pipes.
Production volume
- Low volume: Manual or small hydraulic machine
- Medium volume: Hydraulic machine
- High volume: Electric or CNC bending machine
Power source
Choose between hydraulic and electric models based on available power and operational requirements.
Maintenance Tips
Proper maintenance increases machine life and ensures consistent performance:
- Lubricate moving parts regularly.
- Inspect hydraulic hoses for leaks.
- Clean bending dies after use.
- Check clamp alignment periodically.
- Replace worn rollers and dies on time.
FAQ
1. What is a pipe clamp bending machine used for?
It is used to bend pipes and tubes accurately without flattening or cracking them.
2. Which type is best for industrial use?
Hydraulic and CNC models are best for heavy-duty industrial applications.
3. Can it bend stainless steel pipes?
Yes, most industrial machines can bend stainless steel with the correct die set.
4. What pipe sizes can be bent?
Depending on the model, machines can handle pipes from 6 mm to over 100 mm in diameter.
5. Does bending damage the pipe?
A properly adjusted machine minimizes deformation and maintains pipe integrity.
6. How accurate are CNC bending machines?
They can achieve very high precision, often within ±0.1°.
7. Is operator training necessary?
Yes, training improves safety and ensures accurate bending results.
8. How often should the machine be serviced?
Routine inspection should be done monthly, with major servicing every 6–12 months.
9. Can one machine handle multiple bend radii?
Yes, interchangeable dies allow different bend radii.
10. What is the average lifespan of the machine?
With proper maintenance, an industrial machine can last 10–20 years.
